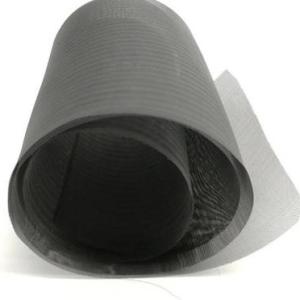

Highest Melting Point And Tensile Strength Commercially Pure Tungsten Wire Mesh
Tungsten wire mesh is made of tungsten wire with purity over 99.9%. Tungsten wire mesh has very high tensile strength. It has the
highest melting point of all metals even at high temperature over 1650ºC. Among its properties are a melting point of 3410ºC, a low
coefficient of thermal expansion and low vapor pressure at elevated temperatures, along with good electrical and thermal conductivity.
Meanwhile, tungsten wire mesh is highly resistant to corrosion, it has high density,sufficient electrical resistance, high modulus of
elasticity low vapor pressure and low thermal expansion combined with good thermal conductivity.
Specification:
| Wire Mesh(Wires/In.) | Wire Diameter | Type Weave | Width Opening | % Open Area |
| 10 x 10 | 0.005 | Plain | 0.095 | 90.3 |
| 10 x 10 | 0.01 | Plain | 0.09 | 81 |
| 12 x 12 | 0.005 | Plain | 0.0783 | 88.4 |
| 18 x 18 | 0.003 | Plain | 0.0526 | 89.5 |
| 18 x 18 | 0.005 | Plain | 0.0506 | 82.8 |
| 20 x 20 | 0.005 | Plain | 0.045 | 81 |
| 20 x 20 | 0.007 | Plain | 0.043 | 74 |
| 30 x 30 | 0.002 | Plain | 0.0313 | 88.4 |
| 30 x 30 | 0.004 | Plain | 0.0293 | 77.4 |
| 40 x 40 | 0.001 | Plain | 0.024 | 92.2 |
| 50 x 50 | 0.0008 | Plain | 0.0192 | 92.2 |
| 50 x 50 | 0.001 | Plain | 0.019 | 90.3 |
| 50 x 50 | 0.002 | Plain | 0.018 | 81 |
| 50 x 50 | 0.004 | Twill | 0.016 | 64 |
| 55 x 55 | 0.0007 | Plain | 0.0175 | 92.5 |
| 60 x 60 | 0.004 | Twill | 0.0127 | 57.8 |
| 80 x 80 | 0.0012 | Plain | 0.0113 | 81.7 |
| 100 x 100 | 0.0008 | Plain | 0.0092 | 84.6 |
| 100 x 100 | 0.001 | Plain | 0.009 | 81 |
| 100 x 100 | 0.002 | Plain | 0.008 | 64 |
| 140 x 140 | 0.001 | Plain | 0.0061 | 74 |
| 140 x 140 | 0.0012 | Plain | 0.0059 | 69.2 |
| 145 x 145 | 0.001 | Plain | 0.0059 | 73.1 |
| 150 x 150 | 0.0008 | Plain | 0.0059 | 77.4 |
| 150 x 150 | 0.0009 | Plain | 0.0058 | 74.8 |
| 180 x 180 | 0.0008 | Plain | 0.0048 | 73.3 |
chemical composition
| Grade | W content min, % | Total impurity elements max, % | Each element max, % |
| W1 | 99.95 | 0.05 | 0.01 |
| W2 | 99.92 | 0.08 | 0.01 |
Weaving method
Tungsten has the highest melting point and tensile strength at extreme temperatures. It may be used in medical devices, electrodes, vacuum heating elements and electronic application.
Tungsten Fact Sheet
| Composition | [W 99.95%] |
| Specifications | ASTM F288, Type 1A |
| Density | 0.697 lbs/in³ |
| Tensile Strength | 330 Kpsi* |
| Elongation | 1%* |
| Melt | 6170° F |
* Tensile strength and elongation are for annealed 0.012″ wire diameter. Please note that material performance data is provided a reference guide only… There are many factors involved in wire cloth performance, so please consult with an experienced engineer before choosing the metal best suited for your unique needs!
Below is a specialty wire mesh woven from tungsten wire. Cleveland Wire Cloth is a weaver of wire cloth, so please call us for pricing and availability of your particular need.
| Mesh | Wire Diameter | Opening / Open Area | Roll Width |
|
|---|---|---|---|---|
| 30 x 30 | 0.0017" | 0.0316" / 90.0% | 5 1/2" |
